SG 30 kW Silent Diesel Generator, Orange Canopy
Three-phase diesel generator set with a Weichai engine and a SmartGen controller in an orange sound-attenuating canopy.
- Rated output
- 30 kW / 37.5 kVA
- Three-phase output
- 400 V · 50 Hz
- Engine model
- Weichai WP2.3D40E200
- Size / weight
- 1440 × 800 × 1330 mm · 690 kg
Overview

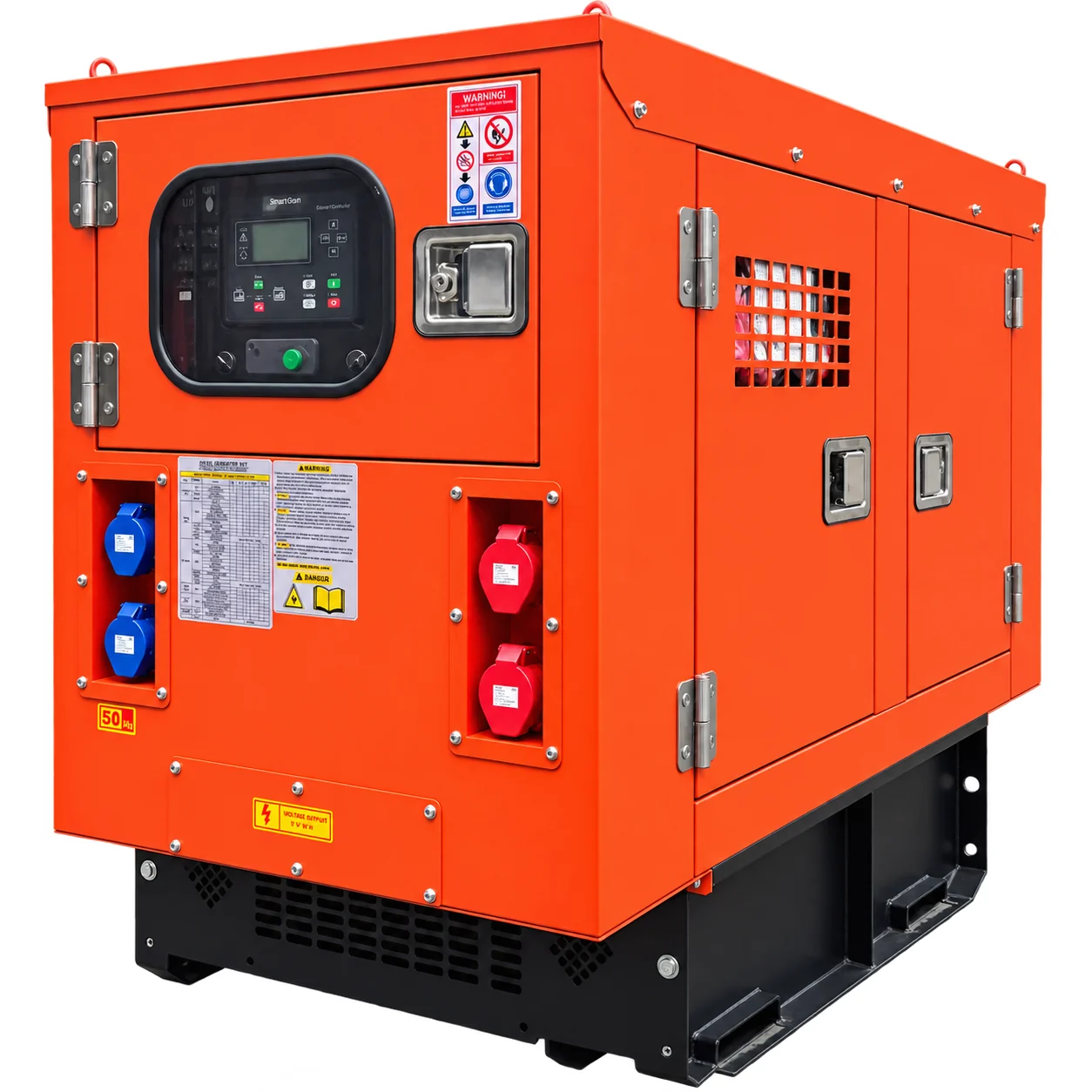

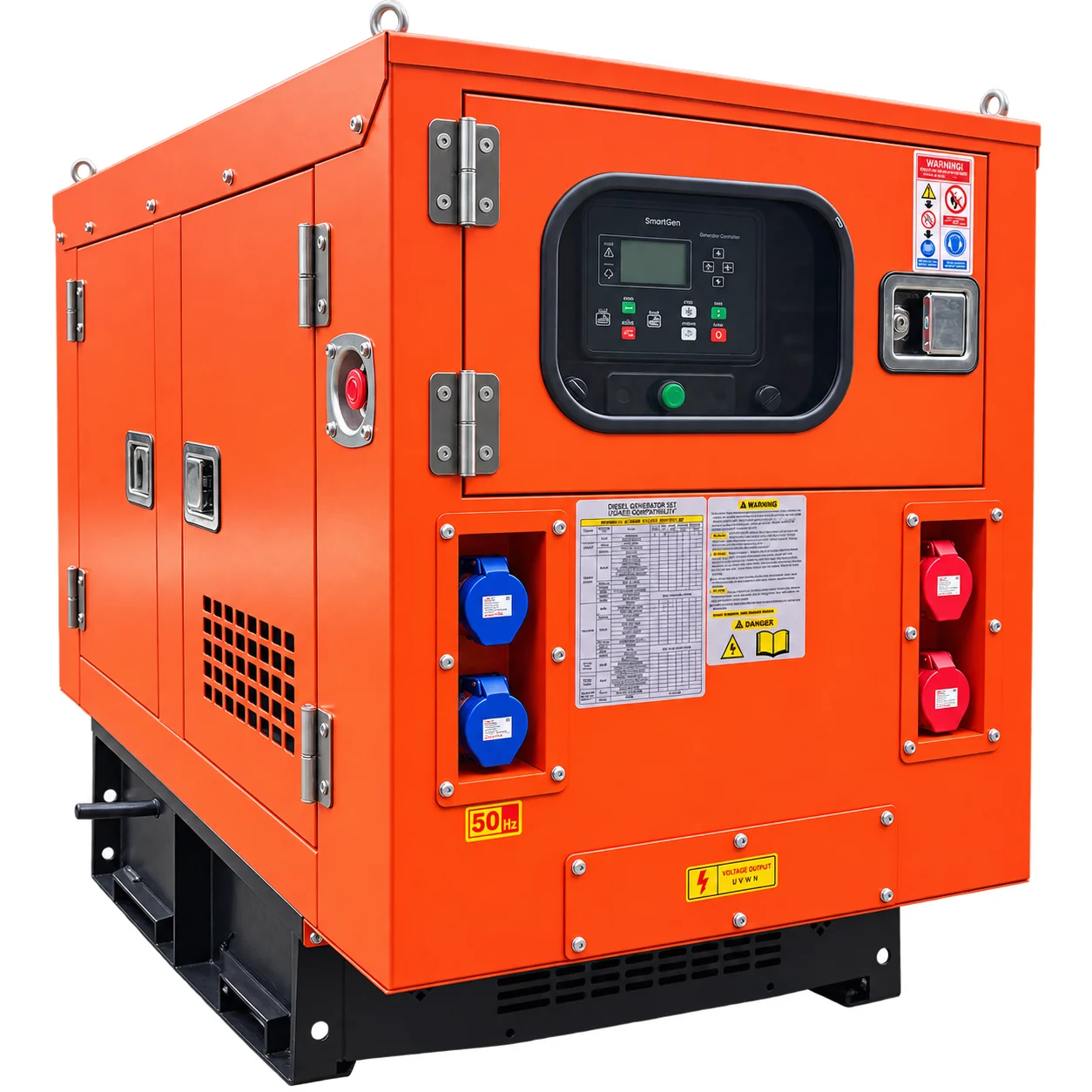

The set is rated 30 kW / 37.5 kVA at 400 V three-phase, 50 Hz, with a Weichai WP2.3D40E200 generating diesel engine inside an orange canopy measuring 1440 × 800 × 1330 mm. It weighs 690 kg. The control end carries a SmartGen genset controller behind a window door, two blue and two red industrial sockets and the output terminal cover; lockable service doors on the side open onto the engine compartment.
Specifications
Specifications for the 30 kW orange-canopy configuration shown on this page.
| Specification | SG 30 kW Silent Diesel Generator, Orange Canopy |
|---|---|
| Product type | Silent diesel generator set |
| Rated output | 30 kW / 37.5 kVA |
| Rated voltage | 400 V |
| Phase number | Three-phase |
| Frequency | 50 Hz |
| Rotational speed | 1500 rpm |
| Fuel type | Diesel |
| Engine model | Weichai WP2.3D40E200 |
| Engine power at 1500 rpm | 36 kW rated / 40 kW standby |
| Controller | SmartGen genset controller |
| Dimensions (L × W × H) | 1440 × 800 × 1330 mm |
| Weight | 690 kg |
Values are taken from the SG 30 kW Silent Diesel Generator, Orange Canopy product documents.

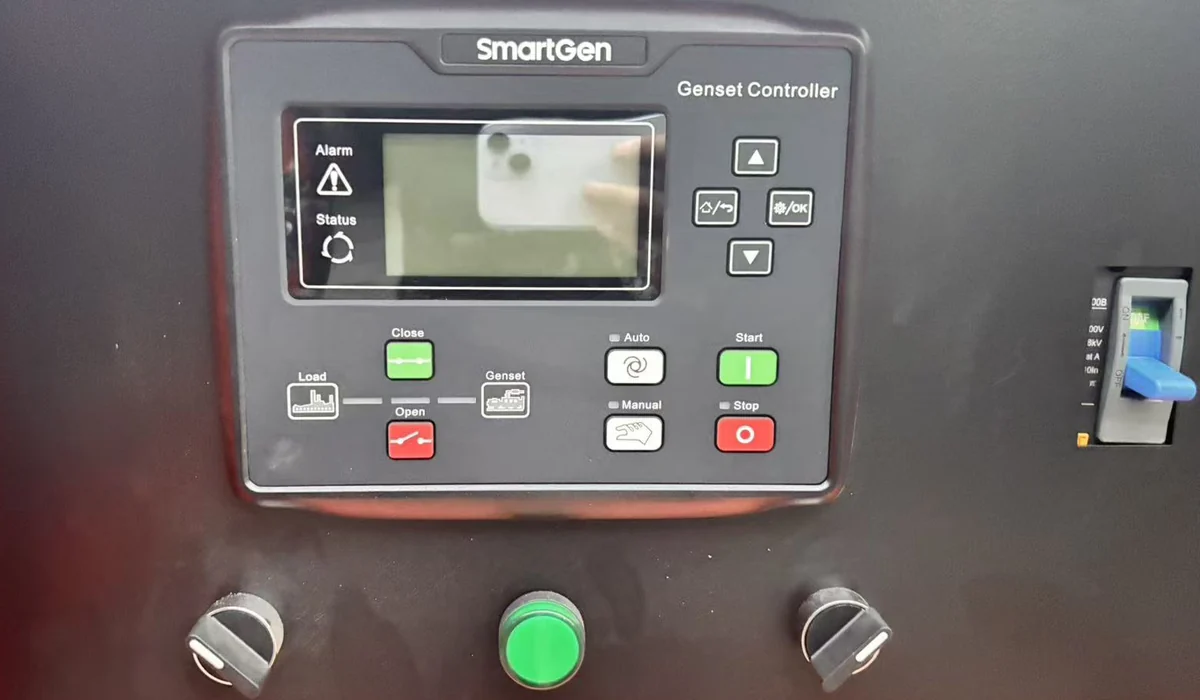

SmartGen genset controller
The controller sits behind a window door on the control end, so the display can be read with the door closed.
- Display with alarm and status indicators
- Auto, Manual, Start and Stop keys
- Close and Open keys for the load and genset breaker
- Green push button and two key switches below the controller

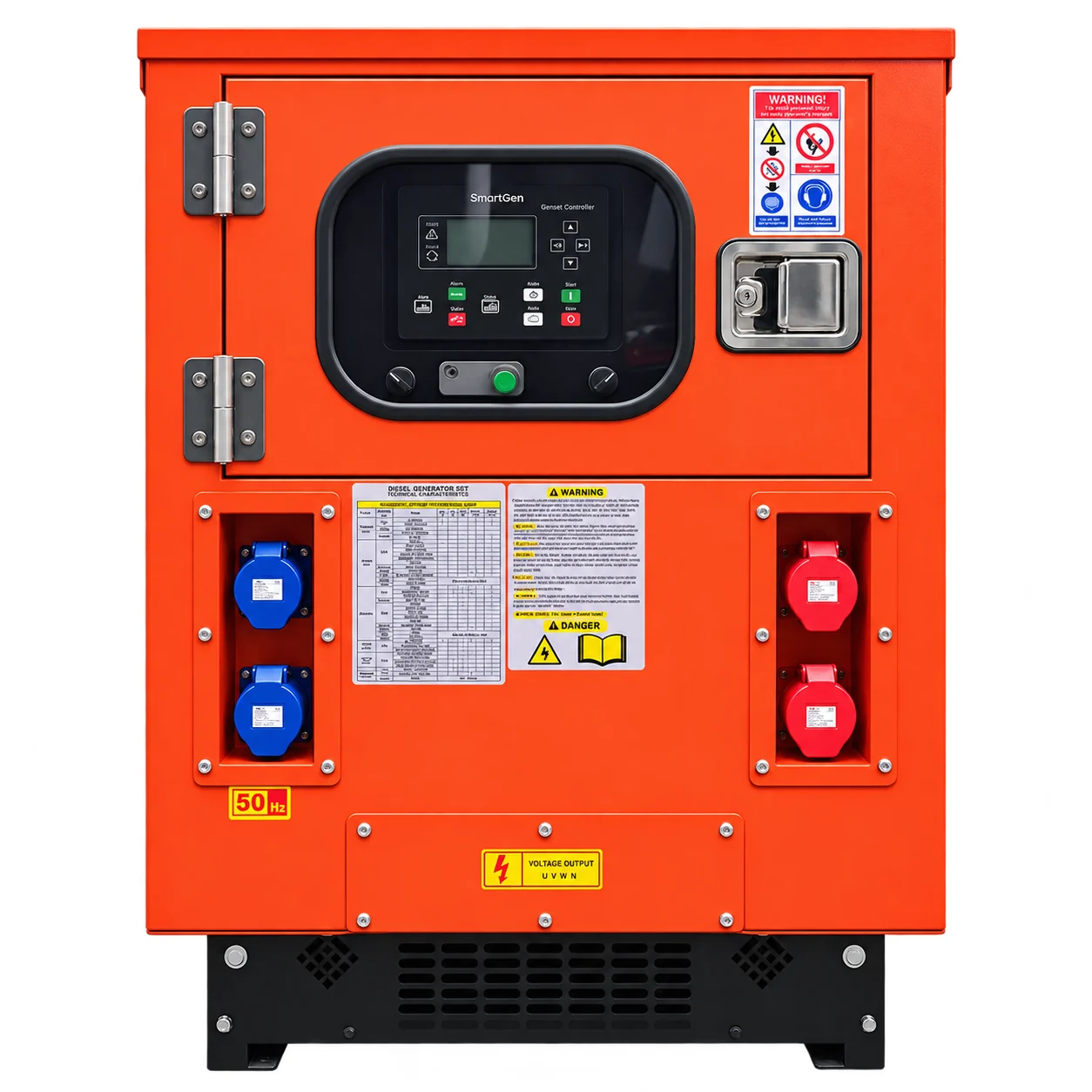

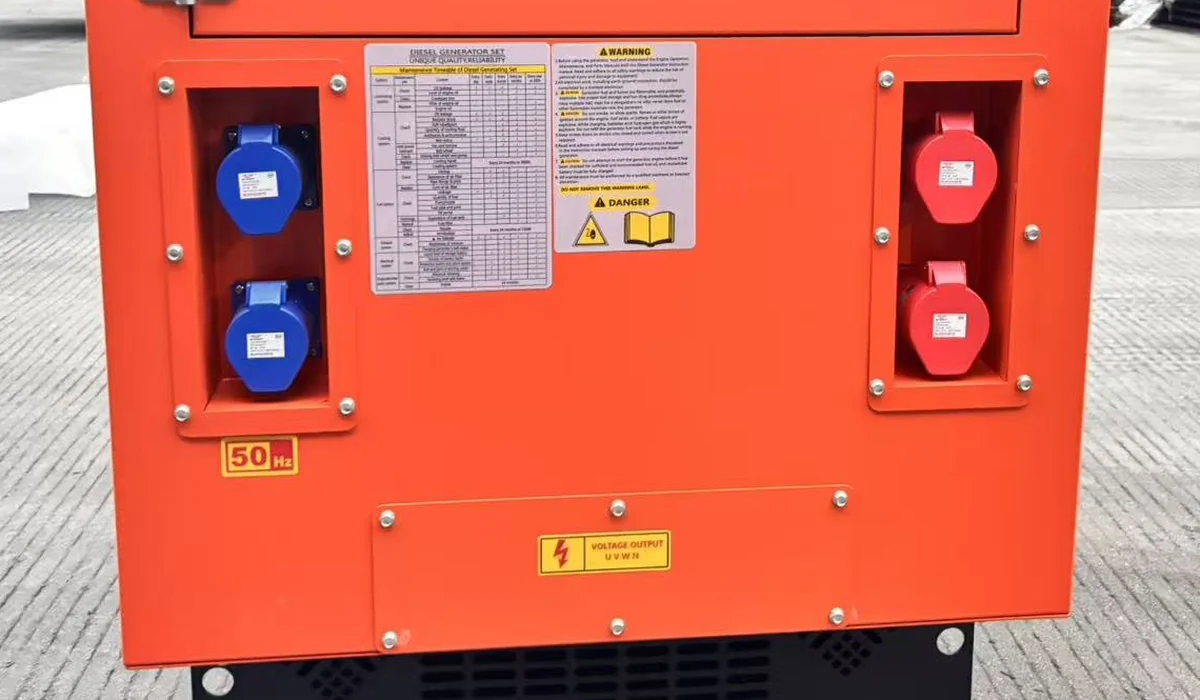

Industrial output sockets
The control end carries two blue and two red industrial sockets in recessed panels, with a covered output terminal plate below.
- Two blue industrial sockets
- Two red industrial sockets
- Output terminal cover marked U V W N
- 50 Hz frequency label

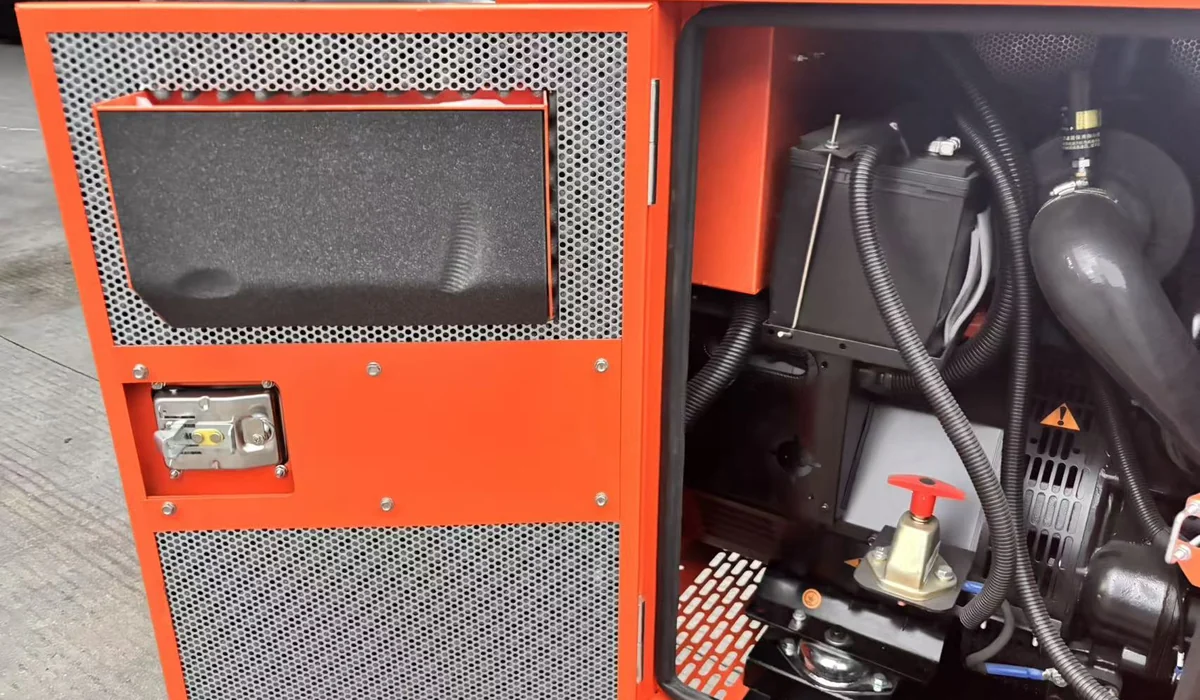

Engine compartment access
Lockable service doors open onto the engine compartment; the door panels are perforated and lined with acoustic foam.
- Perforated door panels lined with acoustic foam
- Lockable stainless door latch
- Starter battery with a red-key battery isolator switch

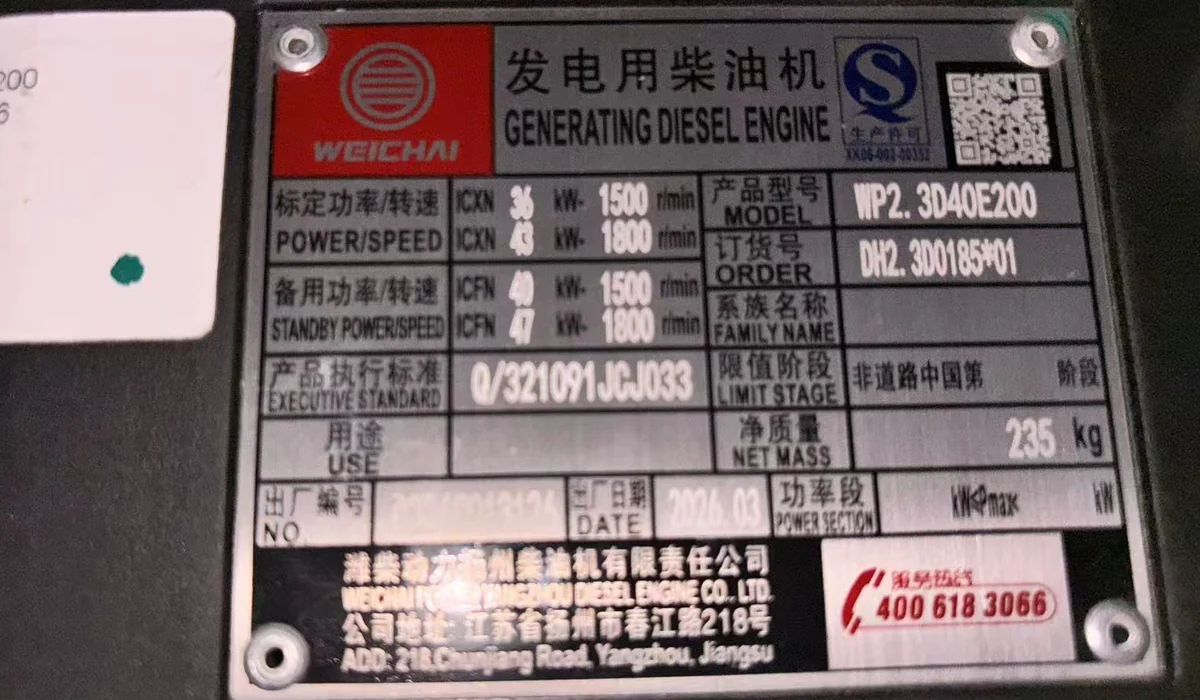

Weichai engine nameplate
The generating diesel engine is a Weichai WP2.3D40E200 from Weichai Power Yangzhou Diesel Engine Co., Ltd.
- Engine model WP2.3D40E200
- Engine power 36 kW rated and 40 kW standby at 1500 rpm
- Engine net mass 235 kg
Questions about SG 30 kW Silent Diesel Generator, Orange Canopy
Short answers for comparing this configuration before quotation.
Send your requirementsWhat output is this SG 30 kW silent diesel generator rated for?
30 kW / 37.5 kVA at 400 V three-phase, 50 Hz. Plan continuous demand against the 30 kW rating and check motor starting loads separately.
How does it differ from the SG 30 kW silent set in the white and grey canopy?
Both are 30 kW / 37.5 kVA sets with a Weichai WP2.3D40E200 engine at 400 V, 50 Hz and weigh 690 kg. This one has an orange canopy measuring 1440 × 800 × 1330 mm with a SmartGen controller and four industrial sockets on the control end; the white and grey canopy measures 1350 × 800 × 1380 mm.
How large and heavy is the set?
The canopy measures 1440 mm long, 800 mm wide and 1330 mm high, and the set weighs 690 kg. Plan lifting, delivery access and a level base for that size and weight.
What should I send for a quotation?
Send the destination country, the equipment you will connect with its running and starting power, the expected duty cycle, the socket and control requirements and the quantity.
