DH19500 Diesel Generator
Electric-start diesel generator in an enclosed canopy, rated 16 kW with 18 kW maximum output.
- Rated / maximum
- 16 / 18 kW
- Output
- 220 V · 50 Hz
- Starting
- Electric
- Size / weight
- 1260 × 665 × 890 mm · 260 kg
Overview
DH19500 is a diesel generator in an enclosed canopy, rated at 16 kW with 18 kW maximum output at 220 V / 50 Hz. It starts electrically, runs on 0# or −10# light diesel from a 30 L tank, measures 1260 × 665 × 890 mm and weighs 260 kg net.

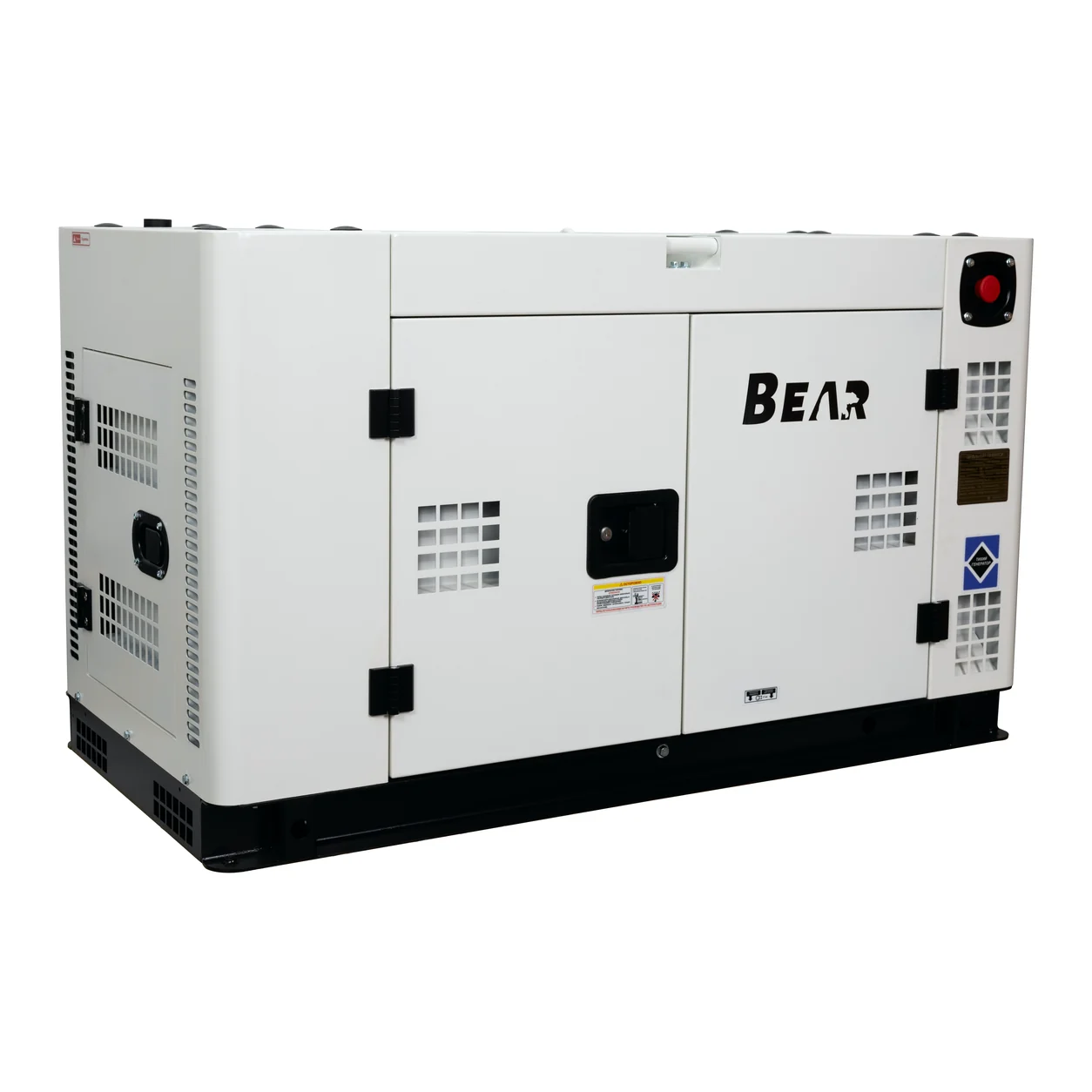

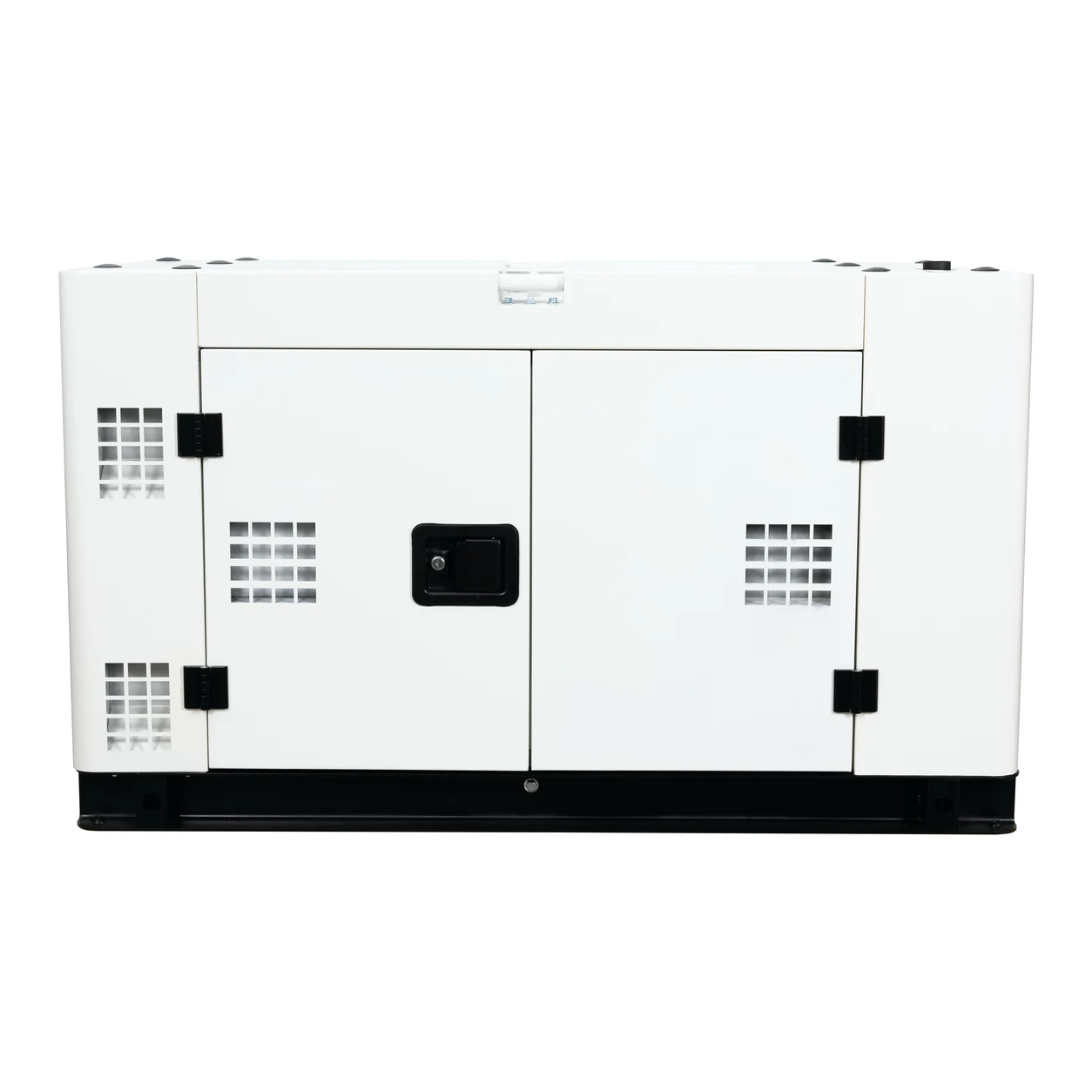

The control panel sits behind a window door at one end of the canopy, with an emergency-stop button on the corner beside it. Each long side has two hinged service doors closed by a central latch.
Specifications
Specifications for the DH19500 as supplied for quotation.
| Specification | DH19500 |
|---|---|
| Product type | Diesel generator set with canopy |
| Rated output | 16 kW |
| Maximum output | 18 kW |
| Rated voltage | 220 V |
| Frequency | 50 Hz |
| Starting system | Electric start |
| Fuel type | 0# or −10# light diesel oil |
| Fuel tank capacity | 30 L |
| Machine size | 1260 × 665 × 890 mm |
| Packing dimensions (L × W × H) | 1290 × 700 × 920 mm |
| Net weight | 260 kg |
| Gross weight | 280 kg |
Values are taken from the DH19500 product documents.

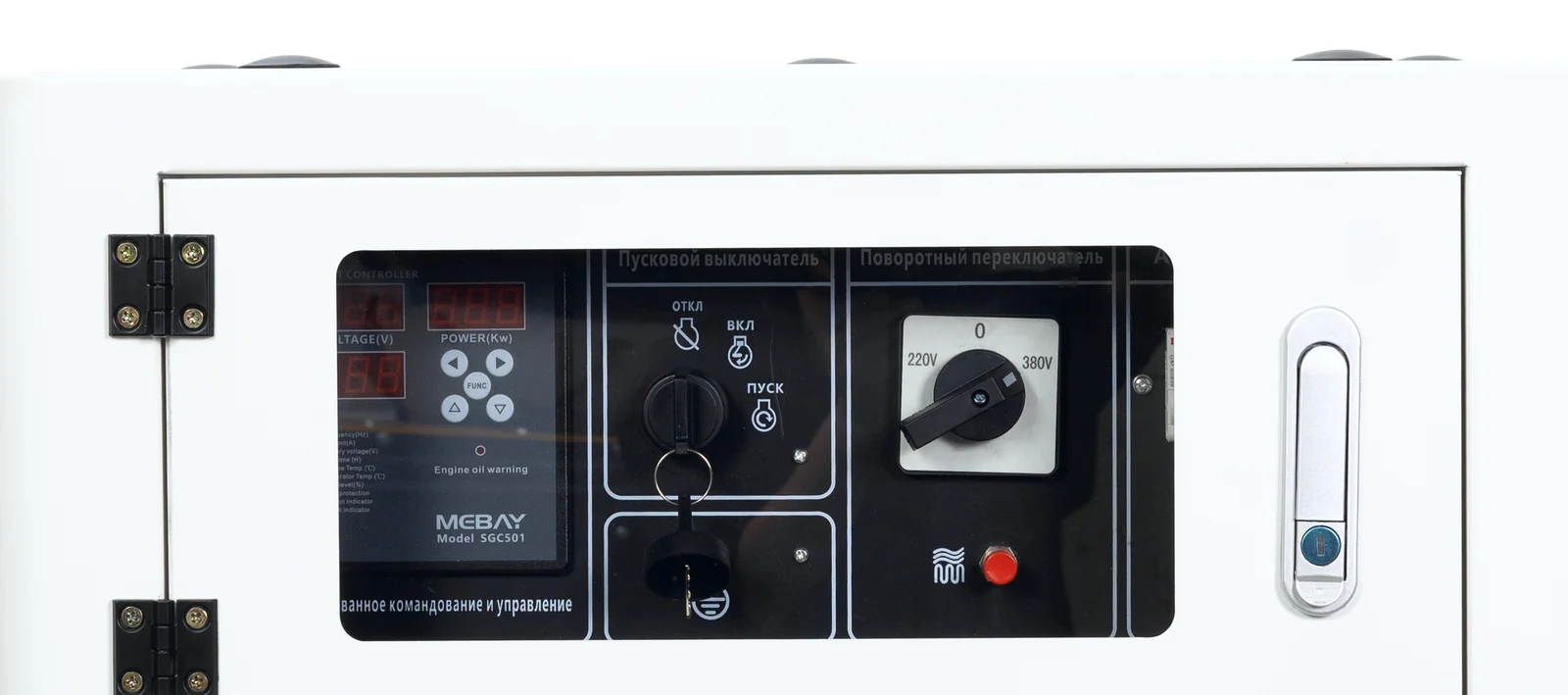

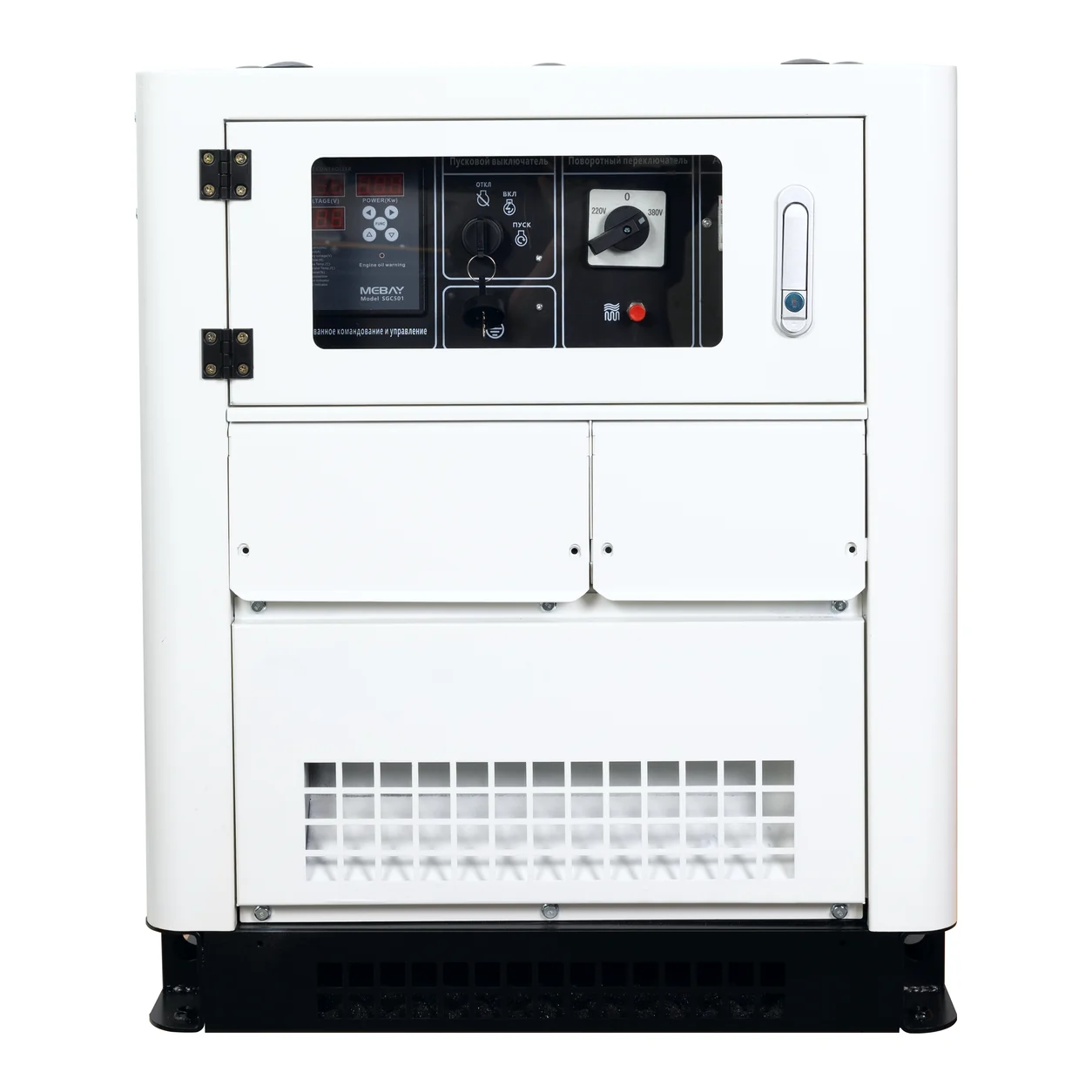

DH19500 control panel
The genset controller and the key start switch are grouped at the control end, behind a hinged window door with a lockable handle.
- MEBAY SGC501 genset controller with digital readouts and function keys
- Engine-oil warning lamp on the controller
- Key switch with OFF, ON and START positions for electric starting
- Window door with a lockable handle over the panel

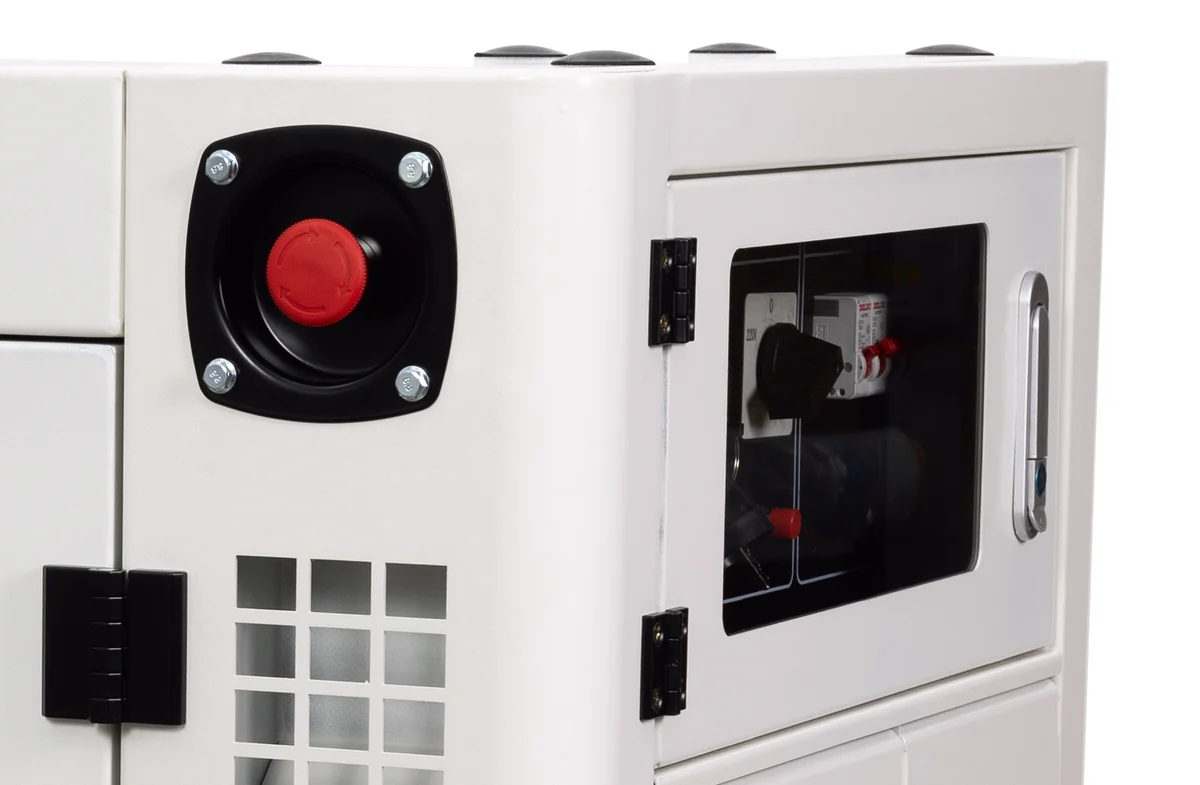

Emergency stop at the control end
A red emergency-stop push button is mounted on the canopy corner next to the control-panel door, where it can be reached without opening the canopy.
Application ideas

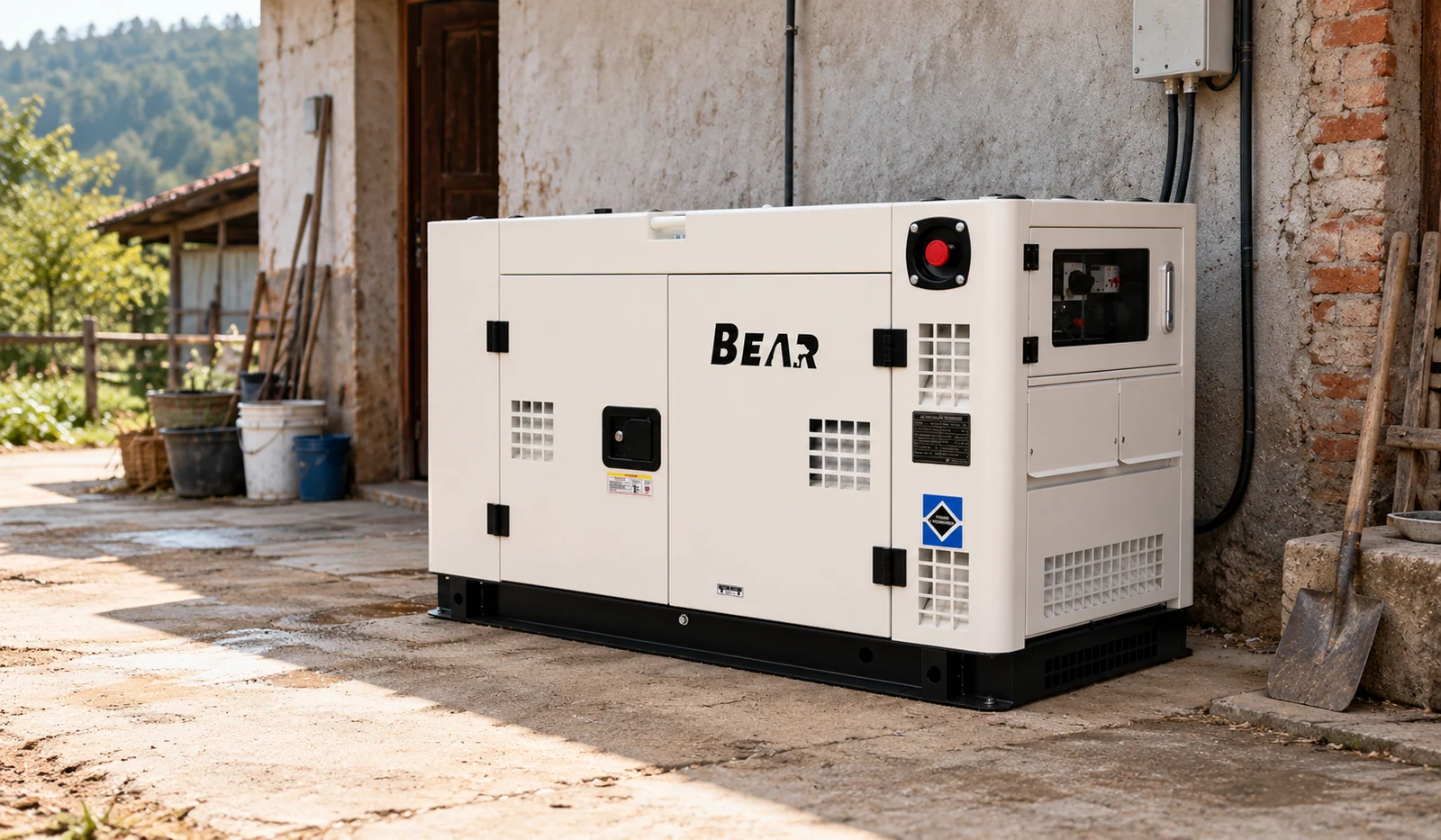

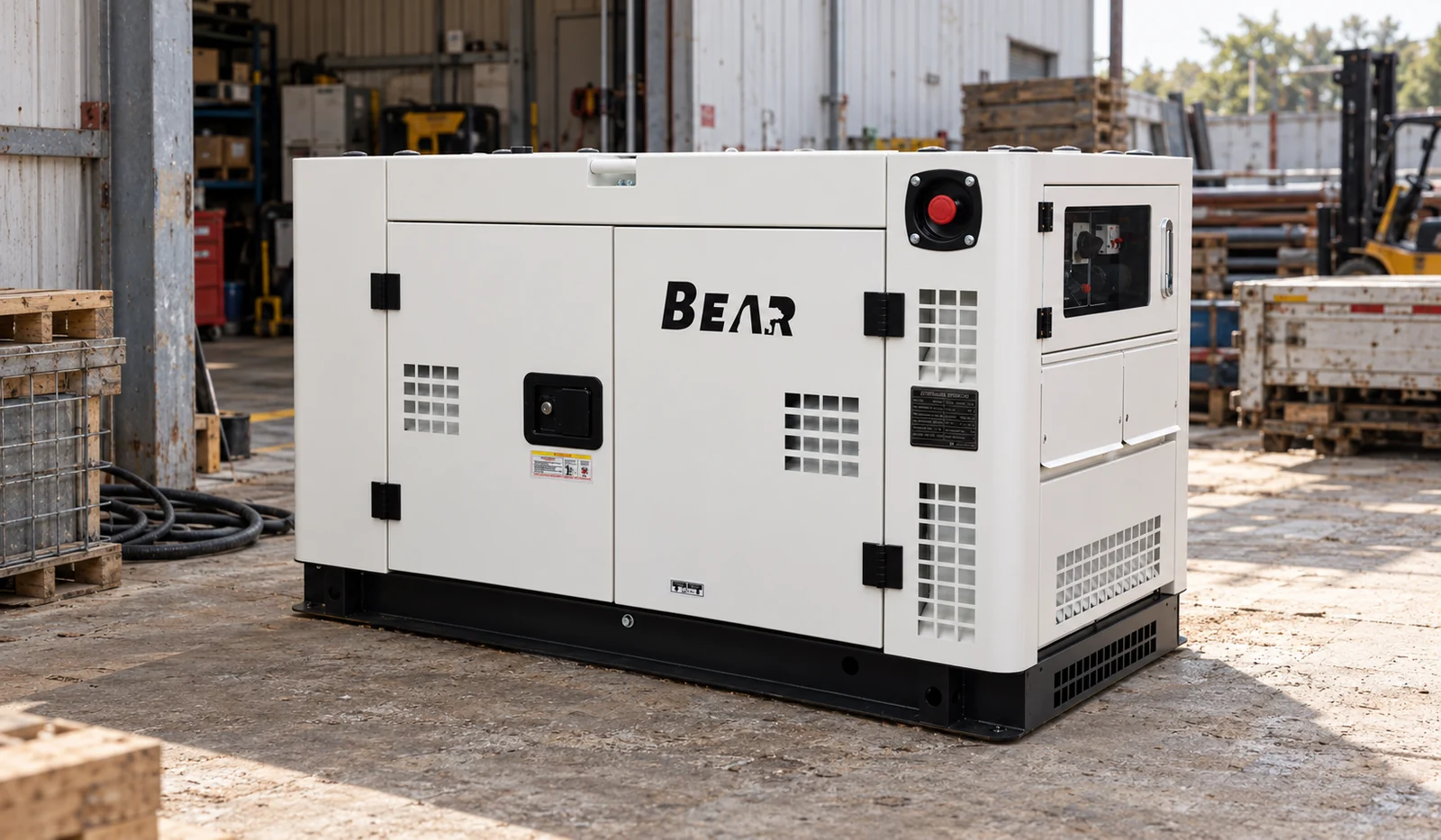

Farmyard and industrial-yard contexts
Two visual concepts for discussing where this canopied diesel set may fit. Match the actual load and destination-market configuration before ordering.
Application visuals are illustrative. Follow applicable outdoor placement, exhaust, earthing and safety requirements for the final configuration.
Questions about DH19500
Short answers for comparing this configuration before quotation.
Send your requirementsWhat are the rated and maximum outputs of the DH19500?
The DH19500 is rated at 16 kW with 18 kW maximum output at 220 V / 50 Hz. Plan continuous demand against the 16 kW rating and check motor or compressor starting loads separately.
Which fuel does the DH19500 use?
Clean light diesel of grade 0# or −10#, from a 30 L tank. Use the −10# grade where the site will see colder weather.
How is the DH19500 started?
Electrically, with the key switch on the control panel, which has OFF, ON and START positions. A red emergency-stop button sits on the canopy corner beside the panel door.
How large and heavy is the DH19500 for shipping?
The generator measures 1260 × 665 × 890 mm and weighs 260 kg net. Packed, it measures 1290 × 700 × 920 mm with a gross weight of 280 kg; plan lifting and delivery access for that weight.
What should I send for a quotation?
Send the destination country, the voltage, phase and outlet standard you need, the equipment you will connect with its running and starting power, the expected duty cycle and the quantity.
