H-C-5500 Inverter Gasoline Generator

Inverter generator in two versions: H-C-5500-A with recoil start and H-C-5500-B with electric start.

Rated / maximum: 4.0 / 4.5 kW
Output: 220 V · 50 Hz
Starting: A: recoil · B: electric
Size / weight: 510 × 310 × 485 mm · 23 kg

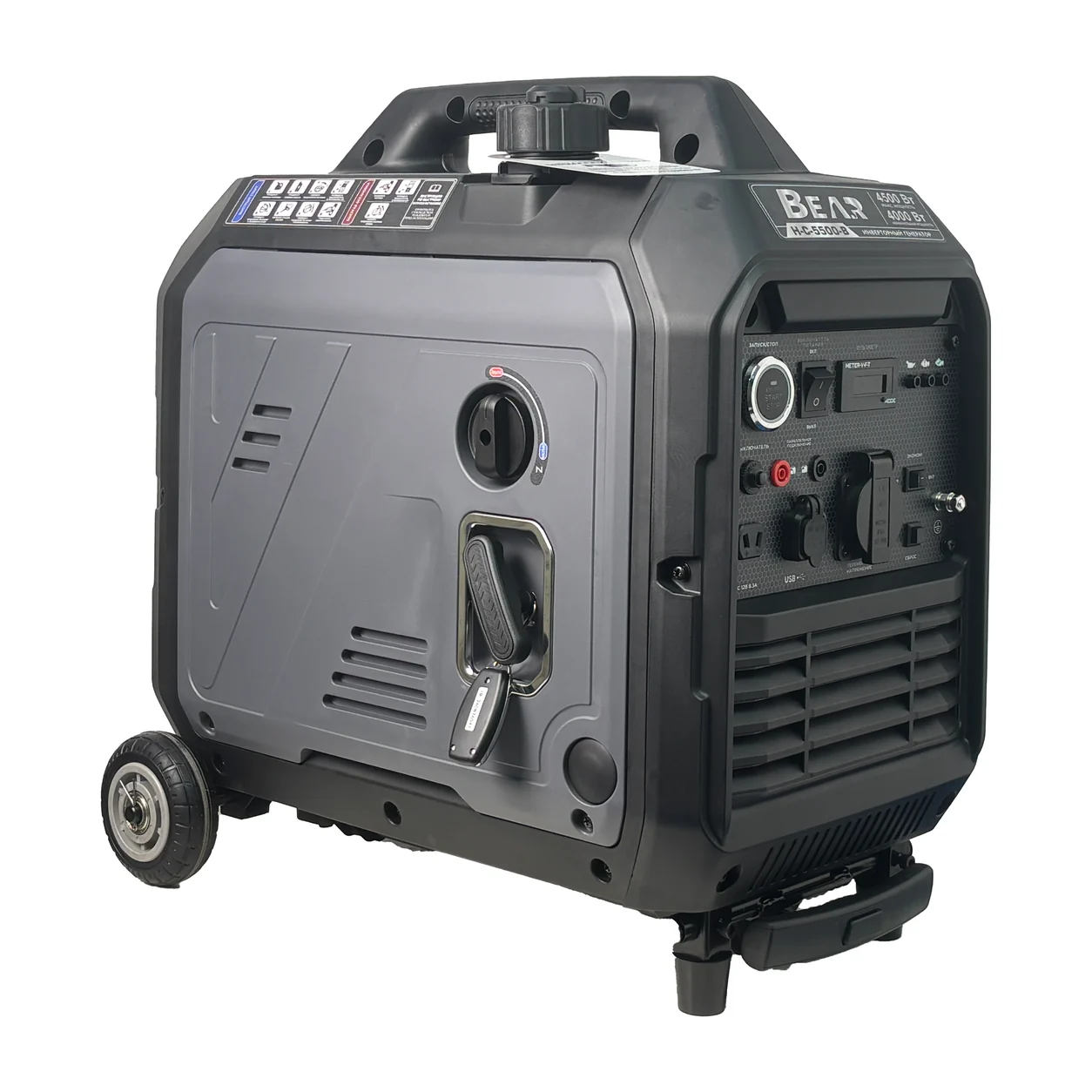

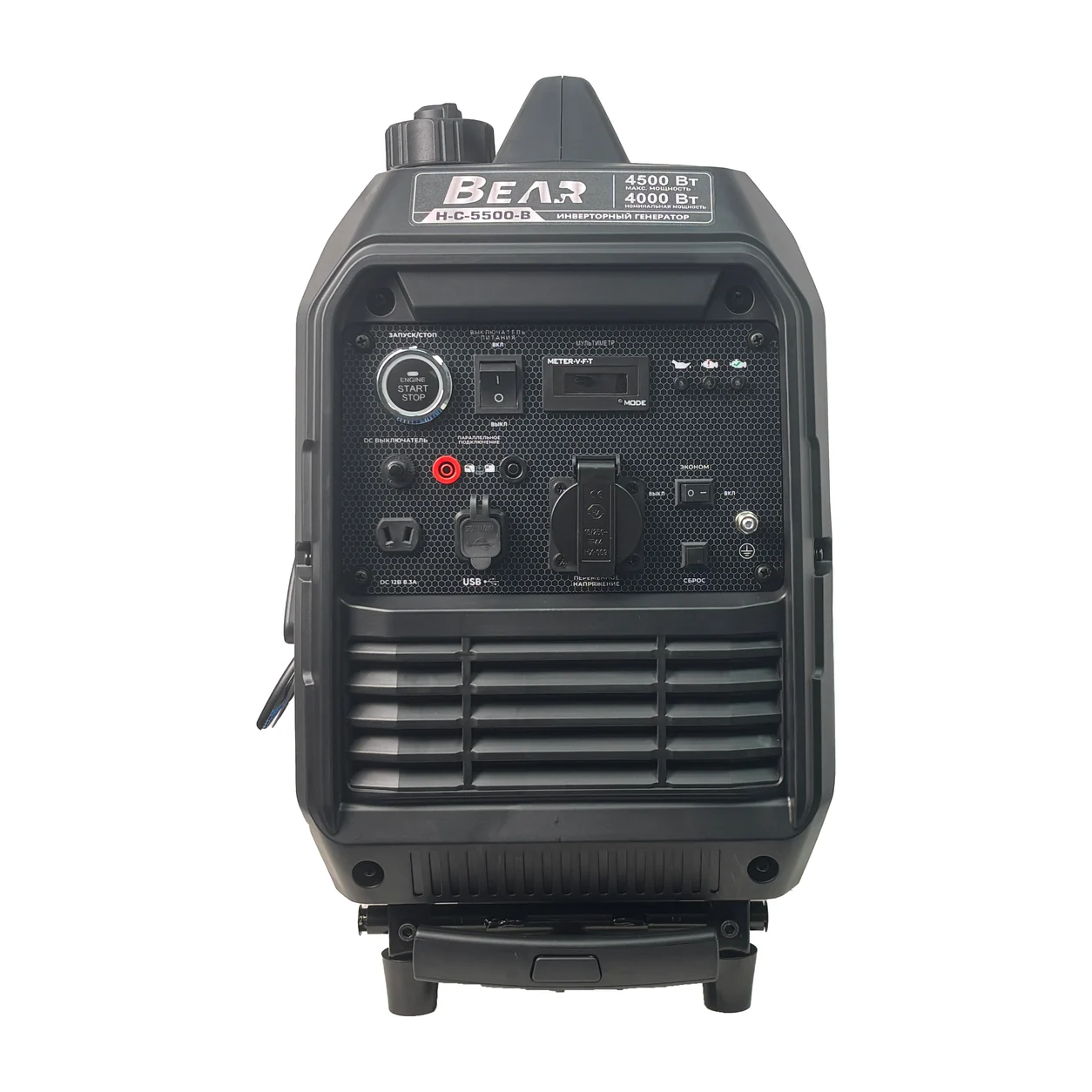

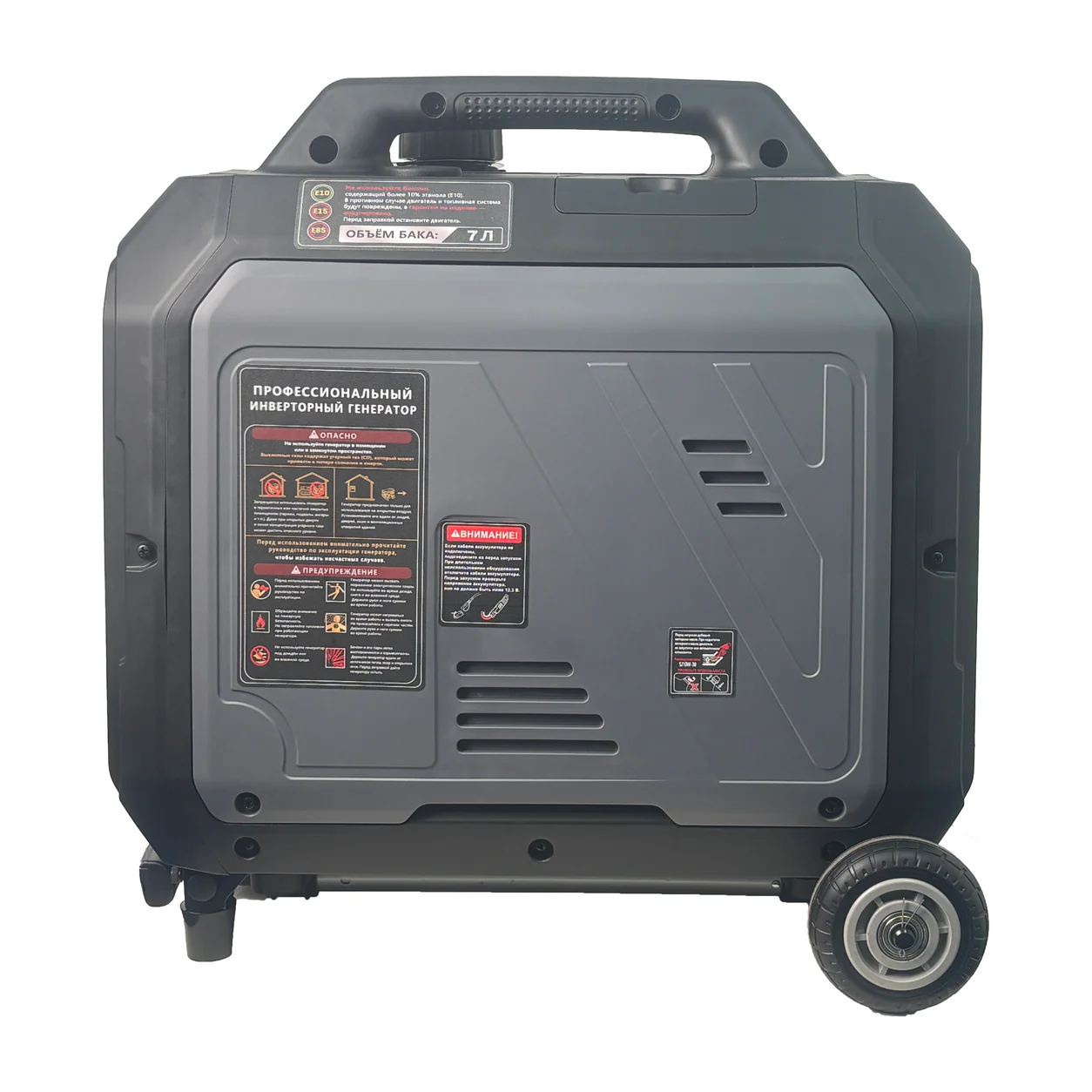

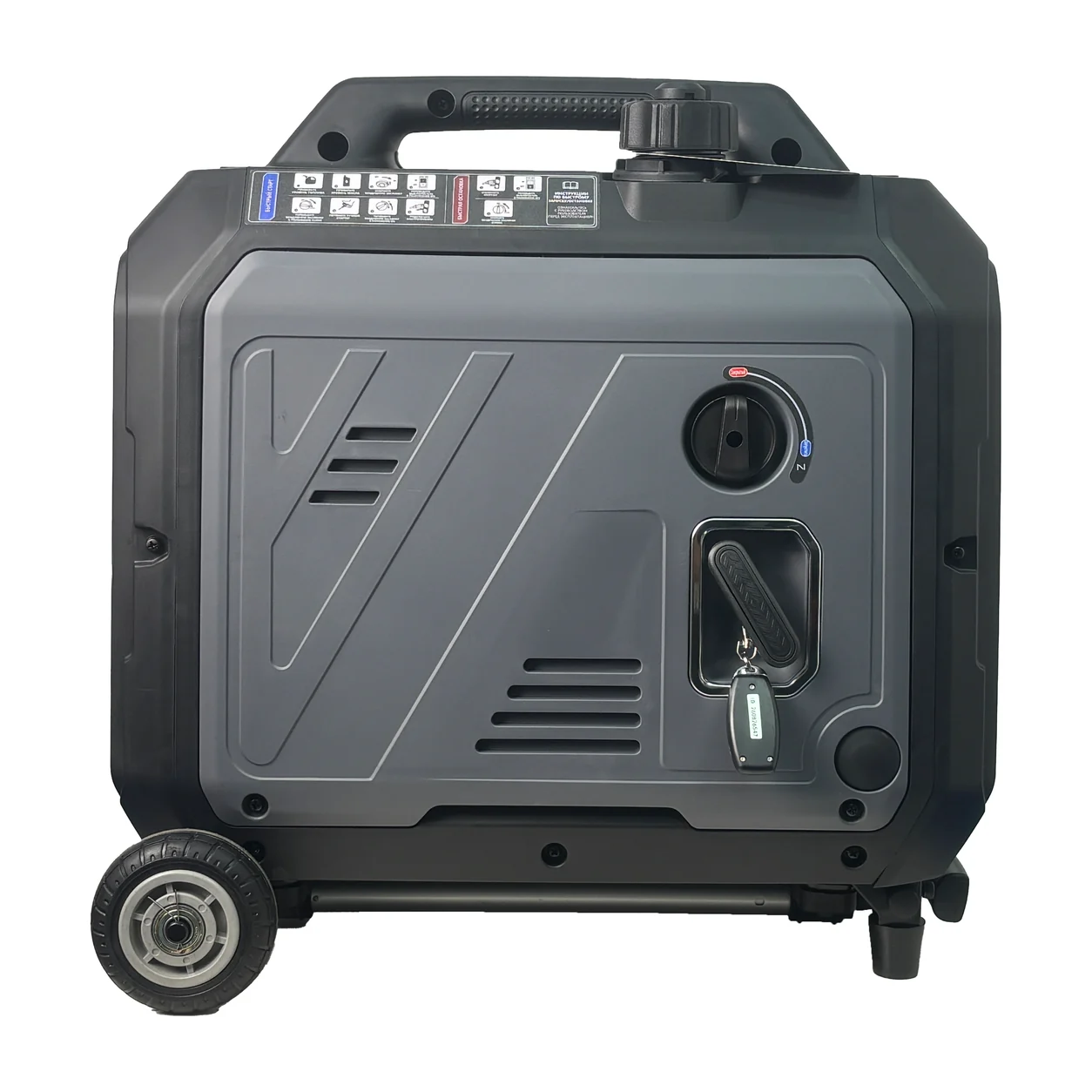

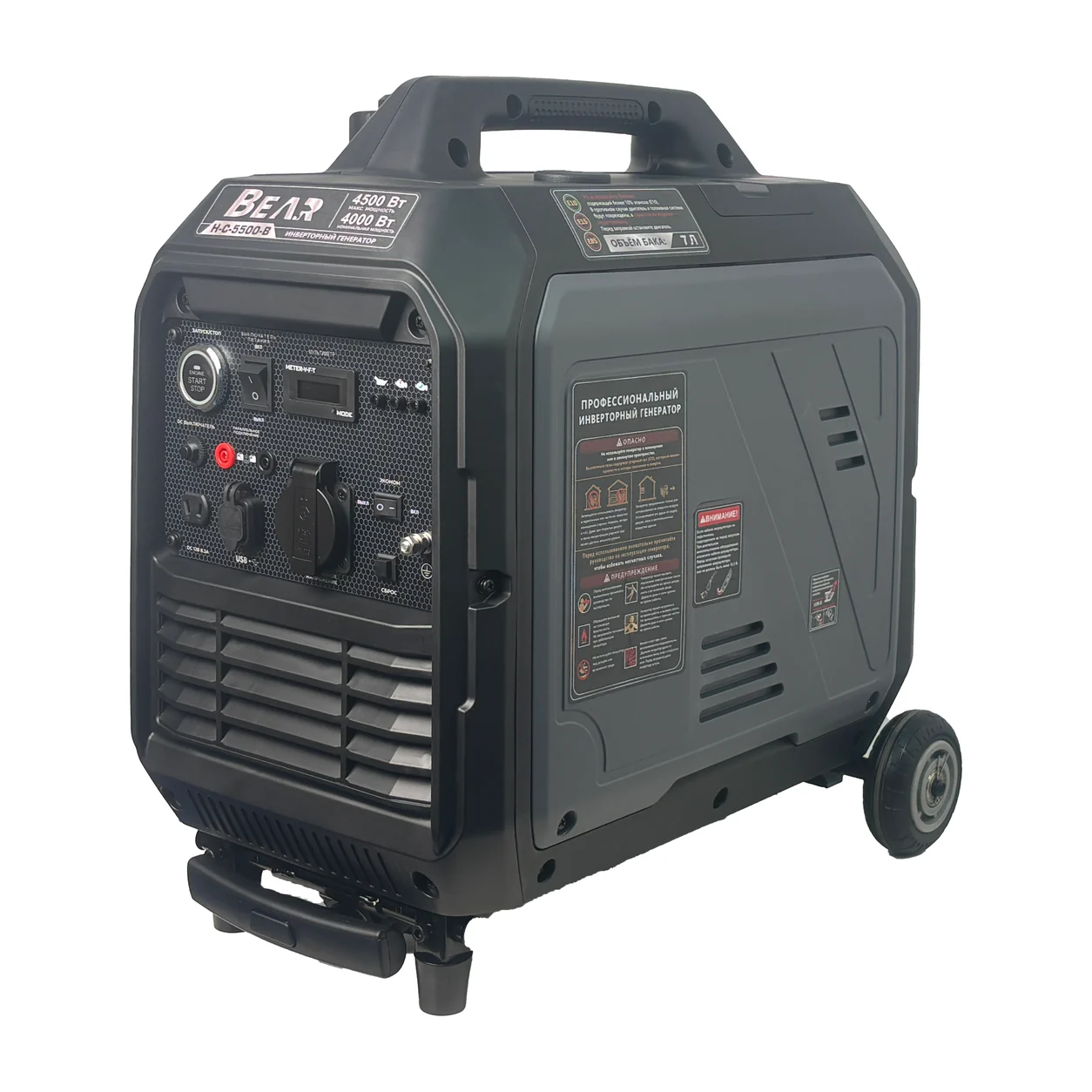

H-C-5500 inverter generator from the control-panel side, with BEAR badge, transport wheels and label side

Overview

H-C-5500 is an enclosed gasoline inverter generator rated at 4.0 kW with 4.5 kW maximum output at 220 V / 50 Hz. It has a 7 L tank for 92-octane gasoline, measures 510 × 310 × 485 mm and weighs 23 kg net.

Two versions share these values. H-C-5500-A starts with the recoil handle. H-C-5500-B adds electric starting from the start/stop button on the panel; the unit shown also starts by recoil and with a remote key. Name the version you need in your inquiry.

Stock MOQfrom 1 unit
Price & trade termby quotation
Lead timeby quotation

Read the full terms

Use these terms to plan the inquiry; the written quotation controls the exact order.

Stock MOQ: 1 unit can be dispatched when the exact model and configuration are confirmed in stock. Production and customized-order MOQ is confirmed by quotation.
Price & trade term: Price, currency, the applicable Incoterm and any loading port are supplied in the quotation; no fixed price is published online.
Lead time: Confirmed in the quotation after stock status, configuration, quantity and the required schedule are reviewed.
Sample: A sample unit can be arranged. Confirm its exact configuration, cost and timing before payment.
Factory audit: Accepted by prior arrangement. Confirm the site, scope, date and visitor details with Miya.

Specifications

Specifications for both H-C-5500 versions; the starting system is listed per version.

Published specifications for H-C-5500
Specification	H-C-5500
Product type	Portable inverter generator
Configurations	H-C-5500-A / H-C-5500-B
Rated output	4.0 kW
Maximum output	4.5 kW
Rated voltage	220 V
Frequency	50 Hz
Starting system	H-C-5500-A: recoil · H-C-5500-B: electric
Fuel type	AI-92 gasoline
Fuel tank capacity	7 L
Machine size	510 × 310 × 485 mm
Packing dimensions (L × W × H)	620 × 345 × 515 mm
Net weight	23 kg
Gross weight	28 kg

Values are taken from the H-C-5500 product documents.

Compare models

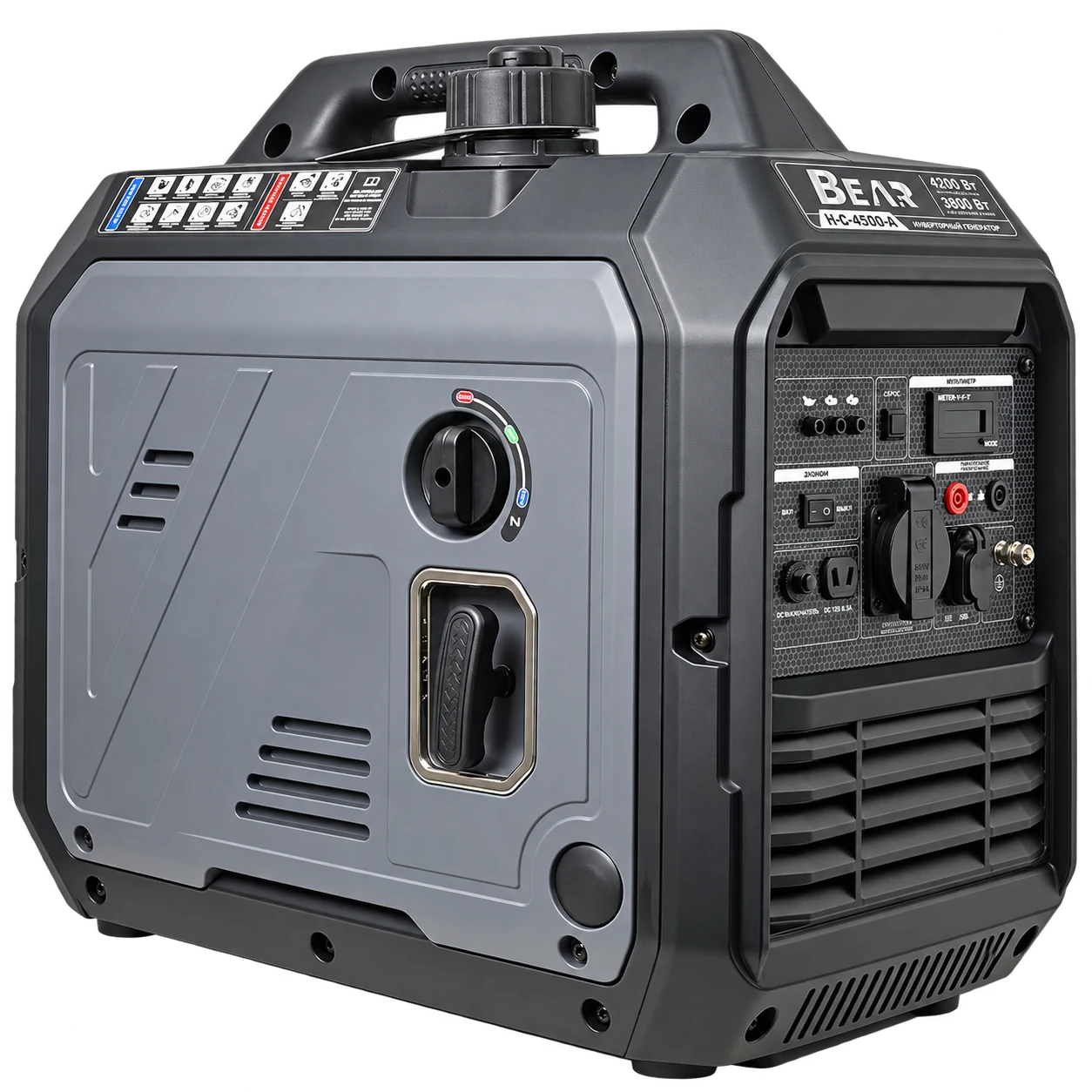

H-C-5500 vs H-C-4500-A

Ask which model fits →

Key differences from the published specifications. See the full specifications above and on each model page; the order configuration is confirmed in your quotation.

H-C-5500 vs H-C-4500-A
Specification	H-C-5500	H-C-4500-A
Rated output	4.0 kW	3.8 kW
Maximum output	4.5 kW	4.2 kW
Net weight	23 kg	21 kg

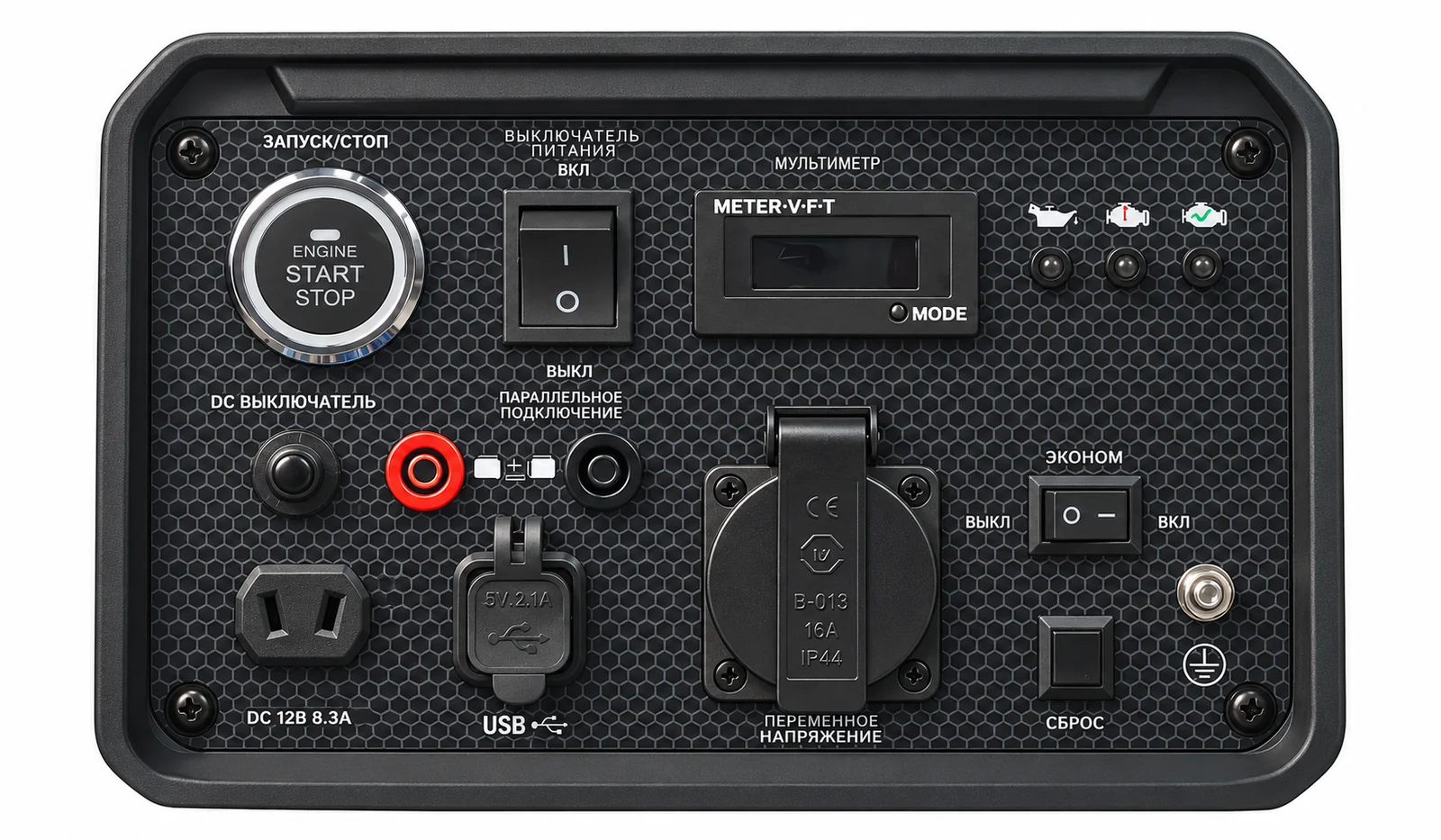

H-C-5500-B control panel with engine start/stop button, power switch, V·F·T meter, Schuko socket, 12 V DC output, USB and parallel terminals

H-C-5500-B control panel and outputs

Starting, outputs, protection and monitoring are grouped on the end panel of the H-C-5500-B shown here.

Engine start/stop button for electric starting
Power switch and economy (ECO) mode switch
Digital meter showing voltage, frequency and running time
Oil warning, fault and running indicator lights
Schuko socket marked 16 A with an IP44 cover
12 V 8.3 A DC output with its own DC breaker
USB output marked 5 V 2.1 A and parallel-connection terminals
AC overload reset button and earth terminal

Watch the H-C-5500-B control panel and starting guide video →

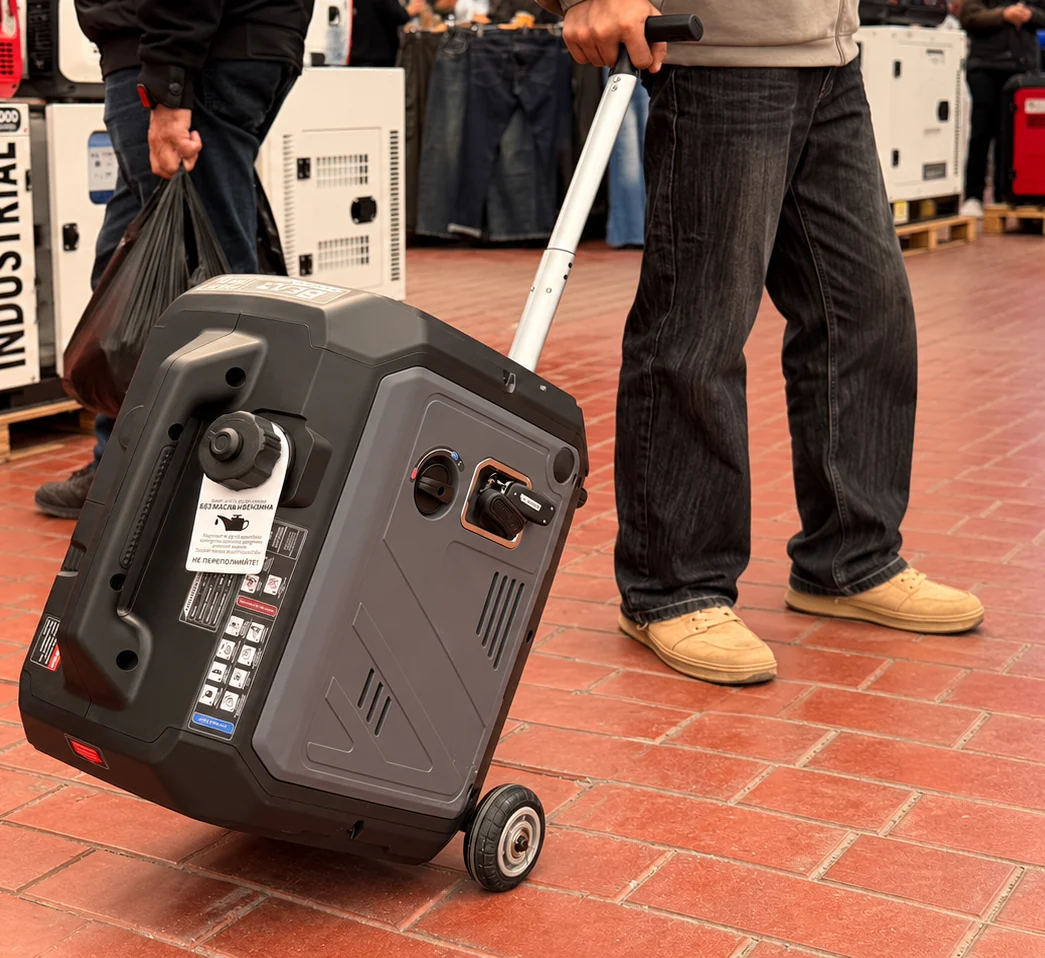

H-C-5500-B pulled on its two wheels by the telescopic handle across a store floor

Wheels and telescopic handle

The H-C-5500-B shown rolls on two wheels with a telescopic pull handle; the fixed top handle is used for lifting.

Questions about H-C-5500

Short answers for comparing this configuration before quotation.

Send your requirements

What is the difference between H-C-5500-A and H-C-5500-B?

The starting system. H-C-5500-A starts with the recoil handle; H-C-5500-B adds electric starting from the start/stop button on the panel. The parameter sheets list the same output, voltage, tank, size and weight for both.

What are the rated and maximum outputs of the H-C-5500?

Both versions are rated at 4.0 kW with 4.5 kW maximum output at 220 V / 50 Hz. Plan continuous demand against the rated output; motor or compressor starting demand still needs a load check.

How is the H-C-5500-B prepared and started for the first time?

Fill engine oil through the filler with a funnel, connect the two battery connectors behind the side cover, fill the tank with gasoline and turn the vent knob on the fuel cap to ON. Then open the fuel valve, switch the power on and start by pulling the recoil handle, by holding the start button for 3 seconds or by holding ON on the remote.

How is the H-C-5500 packed for shipping?

Each unit is packed in a carton of 620 × 345 × 515 mm with a gross weight of 28 kg; the generator itself weighs 23 kg net.

What should I send for a quotation?

Send the version (A or B), the destination country, the equipment you will connect with its running and starting power, the expected duty cycle and the quantity.

Buyer guides for this model

Check power, configuration and documents before requesting a quotation

All buyer guides →

Buyer guide

Three details to confirm

Electrical setupDestination market, voltage, frequency, phase and outlet standard
Actual useConnected equipment, running load, starting demand and duty cycle
Order scopeVersion (A or B), quantity, packaging, branding and required documents
